Wheel Offset Explained

Offset describes the location of the wheels mounting surface in relationship to the center of the rim. Imagine cutting an 8" wide wheel in half and looking at in section, measure in half way (4" inches in this case) from either front or back of the rim, this is our center of the rim "0". We then measure from that "0" until we meet the mounting plate of the wheel (that number converted to millimeters is our offset). If your mounting plate is more on the street side of "0" you have a positve offset, if your mounting plate is more to the backside of the wheel it's a negative offset.

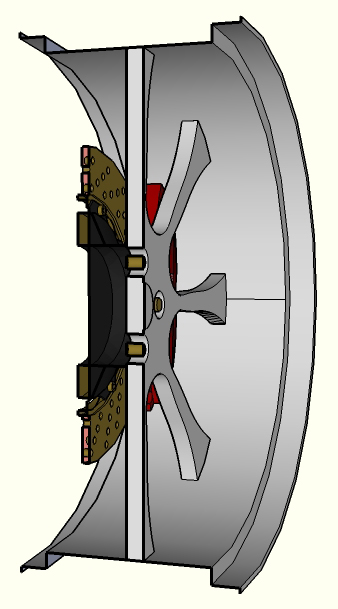

Low Offset

low offset image low offset image

Low offset means the mounting surface for the wheel is in the center of the wheel or very close.
A low offset would be presented as a number from 0 to +15.
Notice where the braking components are located in relationship to the wheels center.

Medium Offset

medium offset image medium offset image

Medium offset means the mounting surface for the wheel is more on the street side of the wheels center.
A medium offset would be presented as a number from +16 to +29.
Notice where the braking components are located in relationship to the wheels center.

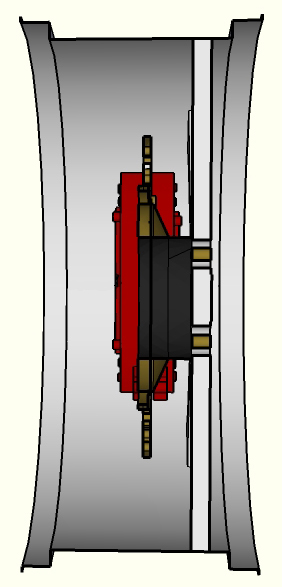

High Offset

high offset image high offset image

High offset, also known as "positive offset" and sometimes referred to as "FWD" (even though the vehicle may be a rear wheel drive vehicle.)
This is the offset most vehicles produced today have, the mounting surface for the wheel is located more on the street side of the wheel.
A high offset would be presented as a number from +30 to +55.
Notice where the braking components are located in relationship to the wheels center.

Negative Offset a.k.a. (Reveresed or Deep Dish)

negative offset image negative offset image

This is where the mounting surface of the wheel is closer to the inside of the wheel well and more of the wheels lip is exposed.
This type of offset can put more stress on the steering and suspension components.
This offset is used a lot in lowriders and hot rods.
Notice where the braking components are located in relationship to the wheels center.
